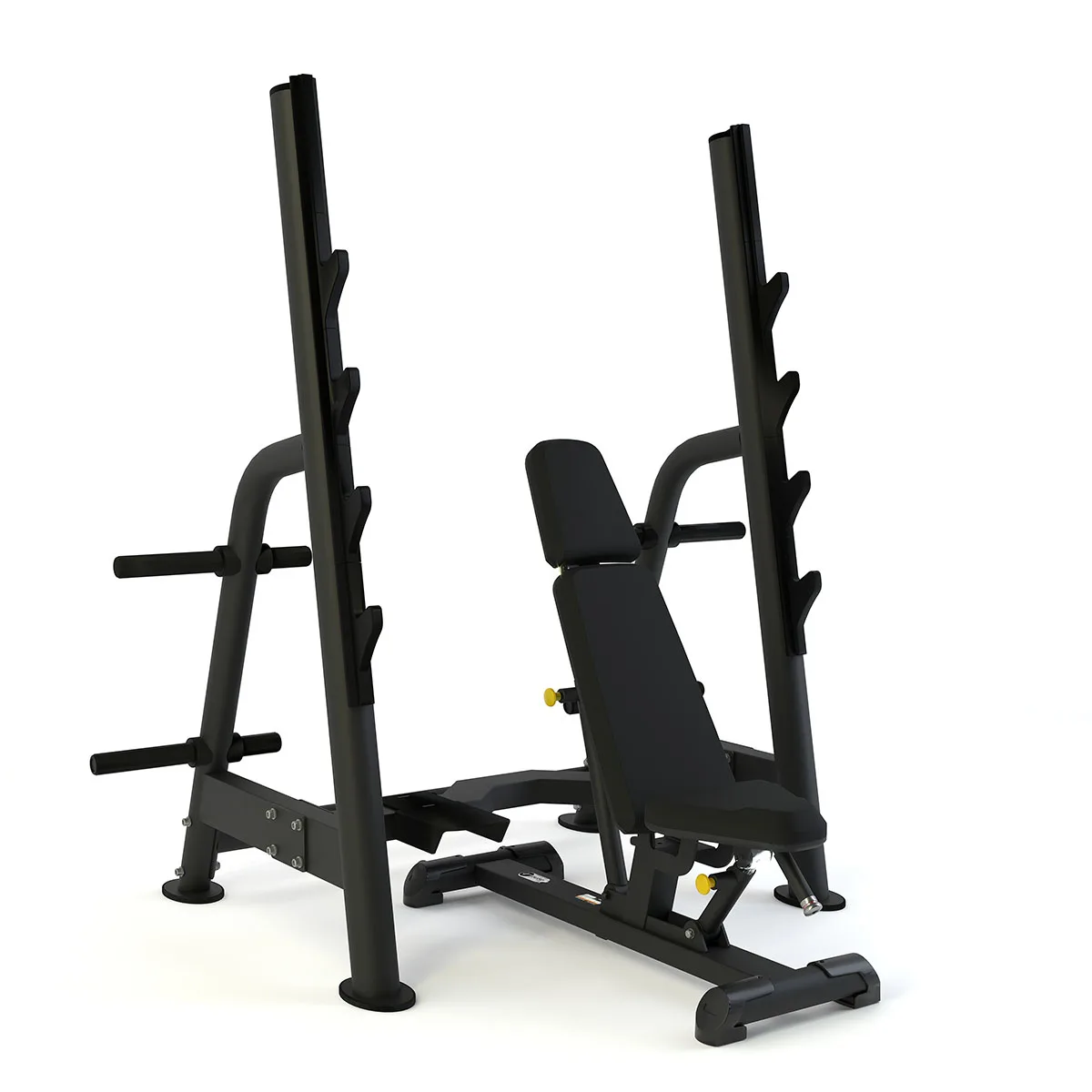

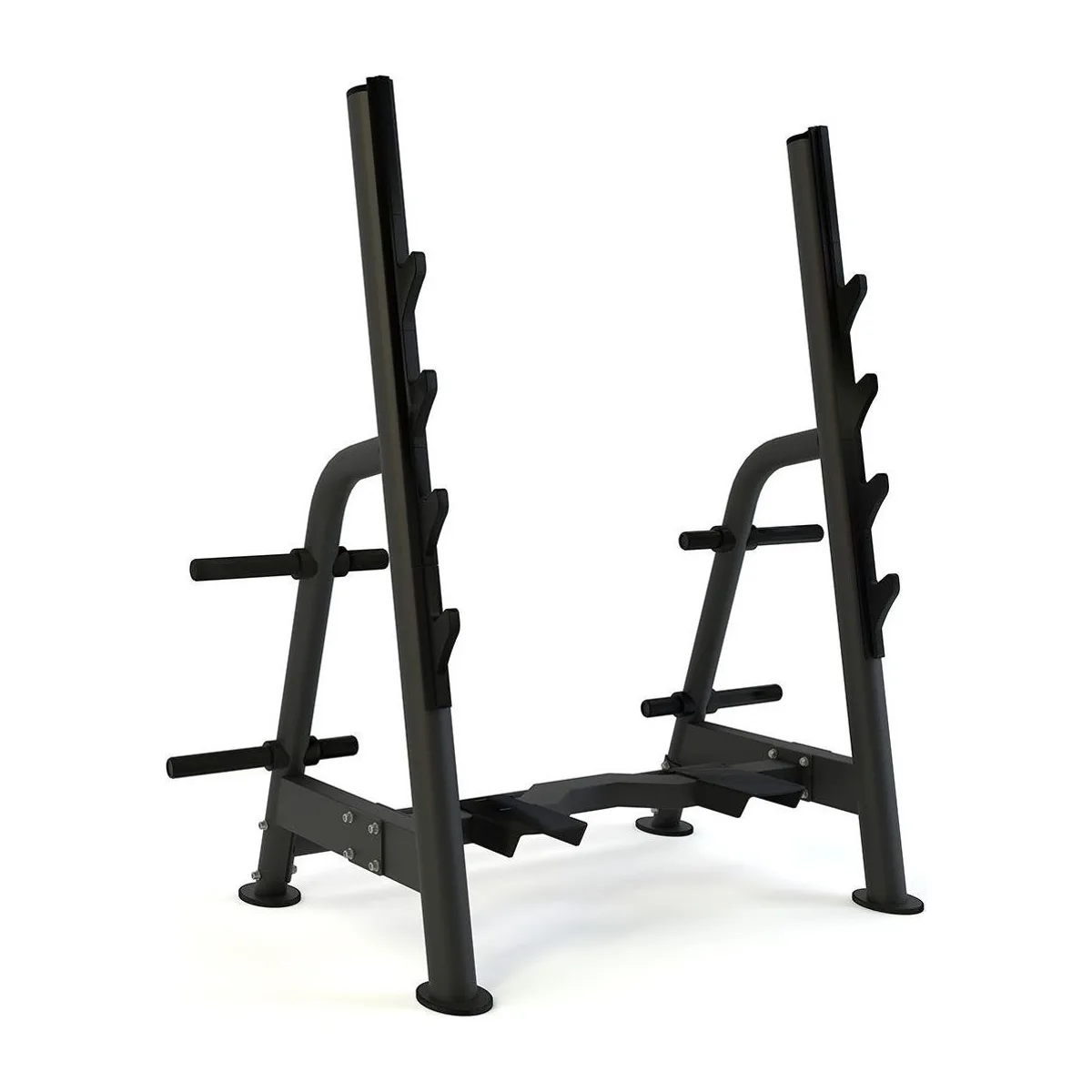

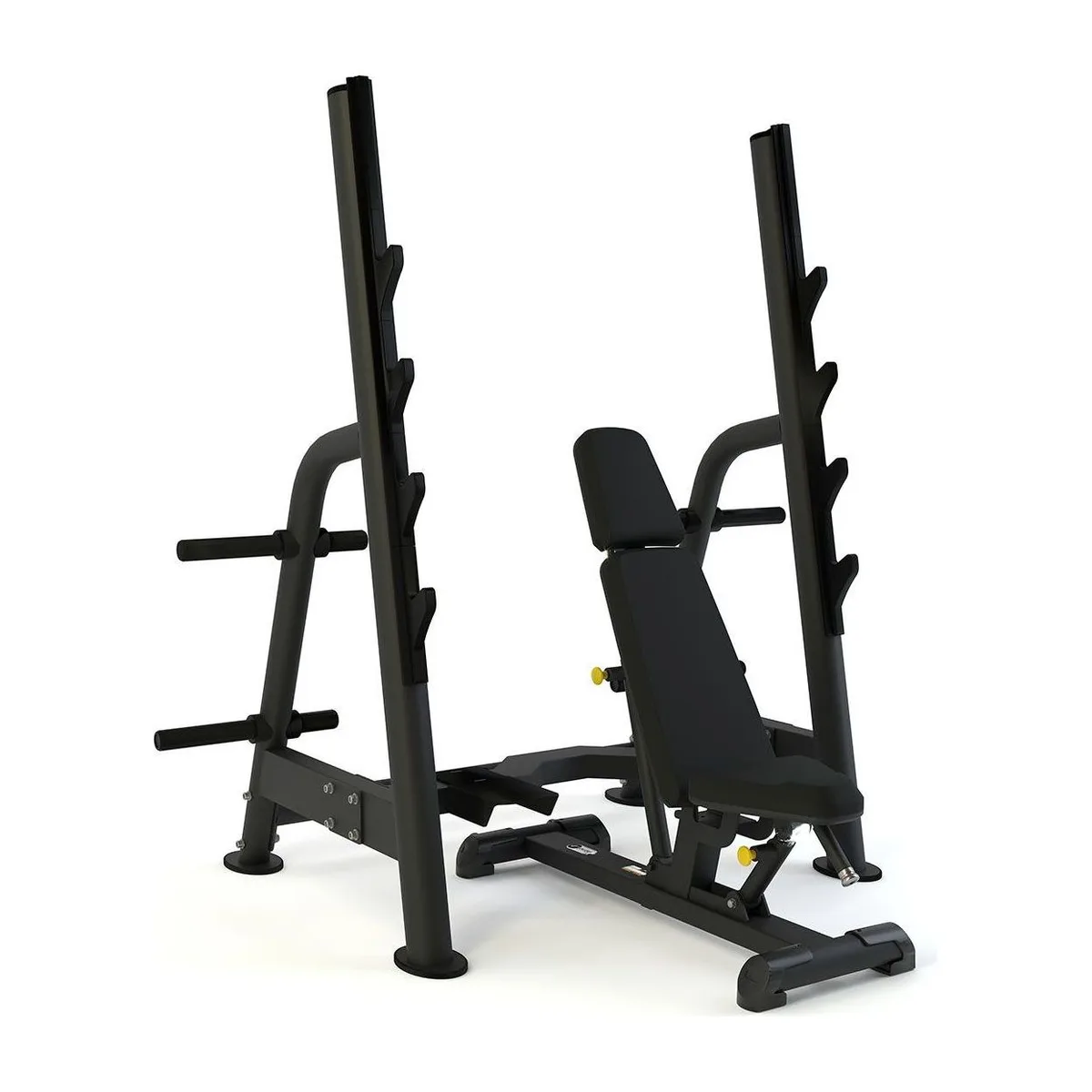

Olympic 4 in 1 Rack

The Olympic 4 in 1 Rack (also known as an Olympic Adjustable Multi Bench) is four machines in one: 1. Flat Bench Press 2. Inclined Bench Press 3. Behind the Neck Press 4. Standing Squat The 815C is a strong, versatile addition to any commercial Olympic weightlifting suite. It is suitable for athletes and gym-goers alike, offers great variety to...

Request a quote WhatsApp +974 5583 6103

Specification sheet, lead time and installation scope on request.

Overview

Category: Free weights · Racks and platforms
Supplied by: Equipt, with installation and service

Specification27

Length: Rack 175.0cm / 68-7/8″; Bench 134cm / 52-3/4”
Height: Rack 186.0cm / 73-1/4″; Bench 41.5cm / 16-5/16”
Width: Rack 110.0cm / 43-5/16″; Bench 44.7cm / 17-5/8”
Weight: Rack 92kg / 202.8lbs.; Bench 49kg / 108lbs.
Total Plate Capacity: 300kg / 661.4lbs.
Maximum User Weight: 180kg / 397lbs.
Frame Construction: All Pulse Fitness products are constructed from durable steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity
Spotter Platform: Yes
Injection Moulded Barbell Catchers: Measured from the floor the Barbell Catcher Heights are: 75.1cm, 145.4cm (4 heights at 23.4cm distance). Constructed from Polyethylene (PE) & Thermoplastic Polyurethane (TPU)
Olympic Plate Storage Posts: x4, Detailed with a durable Polypropylene (PP) surface finish
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean
Seat / Manual Adjustments: Manual adjustments are made simple via easy-grip, pull spring-loaded, lock-pins that are constructed using a hardened plunger and chrome plated ‘tube-in-tube’ adjustment assemblies
Alignment: All points of axis and rotation are located so as to enable perfect alignment of body and machine, reducing the risk of training injury
Multiple Start Positions: The user can choose between multiple starting position using a Single Handed Adjuster. This allows for a wide range of both toning and bodybuilding workouts to be undertaken
Multiple Hand-Grip Positions: Multiple hand-grip positions allows the user to be more specific about which muscle groups are worked out
Adjustable Seat Pad Positions (0⁰ = Horizontal): 5 Selectable Adjustments. Overall Range is 0°, 30.6°. Increments are 0°, 7.6°, 14.9°, 22.5°, 30.6°
Adjustable Back Pad Positions (0⁰ = Horizontal): 9 Selectable Adjustments. Overall Range is 0°, 91.0°. Increments are 0°, 10.7°, 20.4°, 30.1°, 40.1°, 50.6°, 62.2°, 75.4°, 91.0°
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed
Upholstery Construction: The long-lasting, easy-to-clean upholstered support pads have a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. They are puncture, wear resistant and made from vinyl. Producing a total pad thickness of 65mm (2-9/16″)
Rack, Moulded Rubber Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded rubber foot pads are supplied as standard
Bench, Moulded Plastic Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded ABS plastic foot pads are supplied as standard
Package Length: Box 1-180cm / 70-7/8″; Box 2-131cm / 51-9/16″; Box 3-130cm / 51-3/16″
Package Height: Box 1-115cm / 45-1/4″; Box 2-48.5cm / 19-1/16″; Box 3-9cm / 3-9/16″
Package Width: Box 1-28cm / 11″; Box 2-36cm / 14-3/16″; Box 3-38cm / 14-15/16″
Package Weight: Box 1-90.0kg / 198.4lbs.; Box 2-29.8kg / 65.7lbs.; Box 3-6.5kg / 14.3lbs.
Model No: 815C+745C
