Pulse Fitness UK · Strength

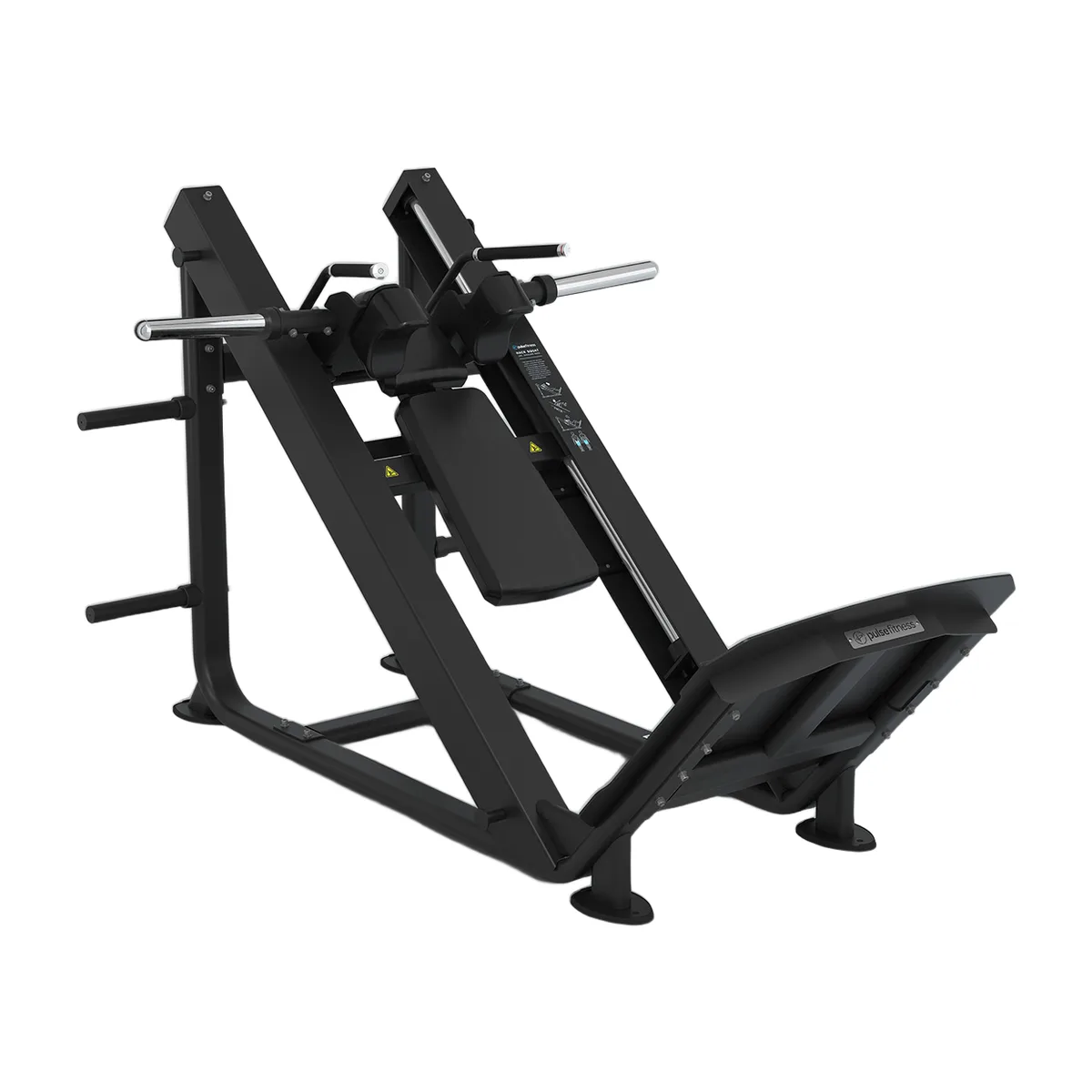

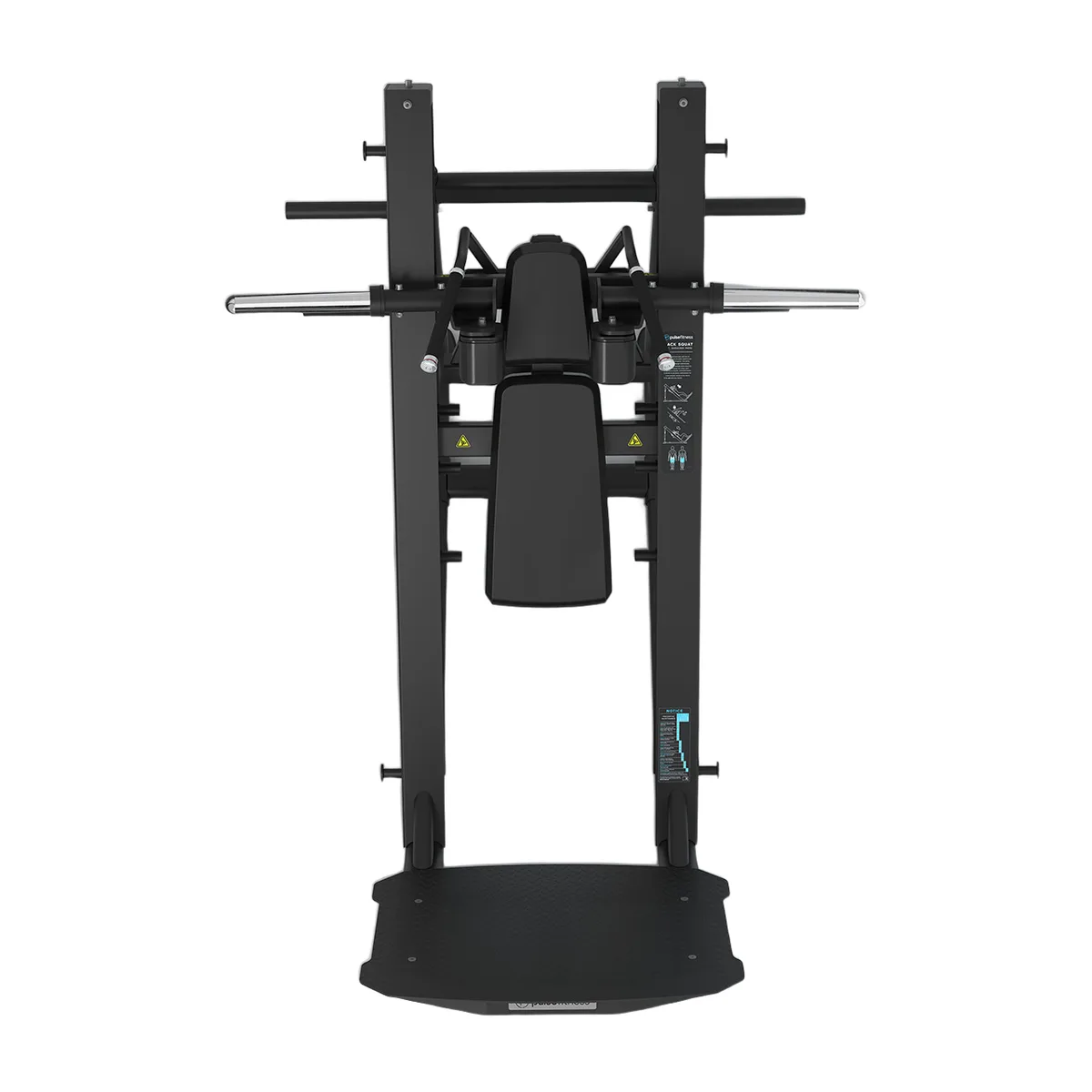

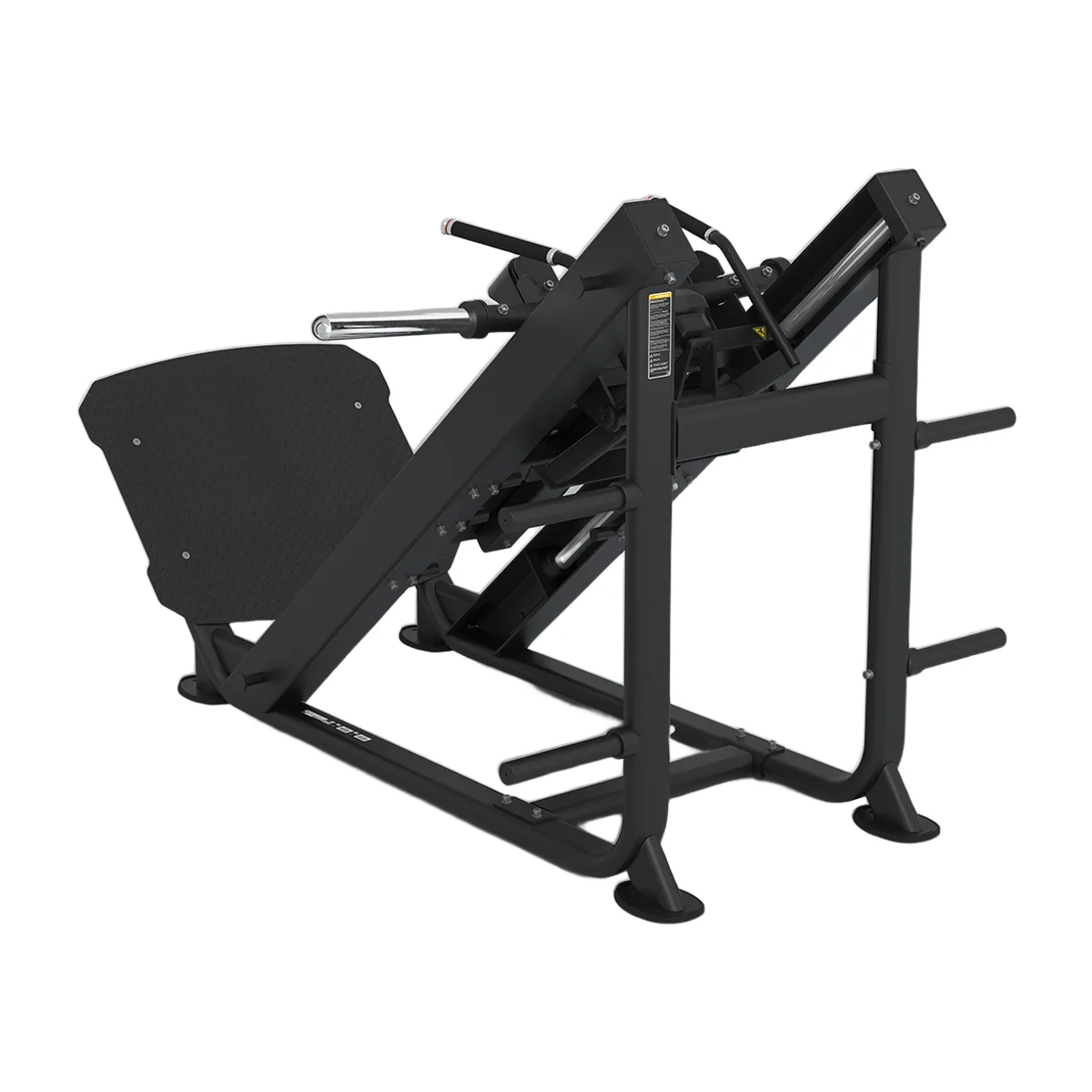

Hack Squat (inc. Shoulder Pads)

This plate loaded Hack Squat elevates leg day workouts to a whole new level! Designed to keep a users upper back and hips in a safe, comfortable and stable position, with padded support for both back and shoulders. This machine targets the quadriceps (one of the body’s biggest muscles). A large footplate ensures comfortable positioning, and the 42 degree angle...

Request a quote WhatsApp +974 5583 6103

Specification sheet, lead time and installation scope on request.

Overview

Category: Strength · Plate loaded
Supplied by: Equipt, with installation and service

Specification24

Length: 217.5cm / 85-5/8”
Height: 135.4cm / 53-5/16”
Width: 152.5cm / 60-1/16”
Weight: 230kg / 507.1lbs.
Initial Resistive Load (No Plates Attached): 65kg / 143.3lbs.
Total Plate Capacity: 300kg / 661.4lbs.
Maximum User Weight: 180kg / 397lbs.
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity
Shoulder Pads: The Shoulder Pad’s supports, are lined with linear bearings
Olympic Plate Storage Posts: Effective length of Plate Storage Post: 25.8cm / 10 3/16″
Range of Motion: All machines within the range have a full and natural range of motion, which increases flexibility and enhances the muscle’s ability to perform
Hand-Grip Assembly: The hand-grips have been positioned to ensure a neutral wrist position is always achievable. This facilitates less stress on the users wrist, which in turn allows for a more comfortable, and a safer work-out; The hand-grips are formed from a slip-resistant material that is non-absorbing and wear-and-tear resistant
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, and are easy to wipe clean; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean
Adjustable Height Shoulder and Back Rest Pads: This assembly has quick-release handles, allowing the mechanism to swivel open allowing a User to perform a safe squat
Hand-Grip Levers / Manual Adjustment: The hand-grip assembly has a simple spring-loaded, swivel locking mechanism
Alignment: All points of axis and rotation are located so as to enable perfect alignment of body and machine, reducing the risk of training injury
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken
Graphic Information Panel: The graphic information panel is designed to show an easy-to-follow, simple step-by-step pictorial instructions. These illustrate the machines setup, the correct operating procedure, user start and finish positions and which identify which muscle groups will be trained during the work-out
Upholstery Construction: The long-lasting, easy-to-clean upholstered support pads have a high resistance to: abrasion, ageing, bacteria, disinfectant, mildew, oil and stains. They are puncture, wear resistant and made from vinyl. Producing a total pad thickness of 65mm (2-9/16″)
Moulded Plastic Foot Pads: Designed to protect polished floors whilst enhancing safety. Moulded ABS plastic foot pads are supplied as standard
OPTIONAL EXTRAS: Upholstery Colours: Slate Black / Midnight (Single Black Stitching); Coco (Single Black Stitching); Leaf (Single Black Stitching); Reef (Single Dark-Blue Stitching); Rosso Red (Single Mid-Red Stitching); Sky / Blue Grey (Single Black Stitching); Black / Carbon Fibre (Double Blue Stitching); Black / Carbon Fibre (Double Red Stitching); Black / Carbon Fibre (Double Black Stitching)
Key Features: Space saving 42 degree design, for a minimal product footprint size; Additional Pegs for adding resistance bands on to both sides of this Rack; Intuitive, easy-to-use lockout system, with dual handles for safety; Fully enclosed linear bearings for a smooth, quiet motion; High impact polypropylene covered Olympic weight plate supports, protect frame and reduce noise
Model No: 516H
