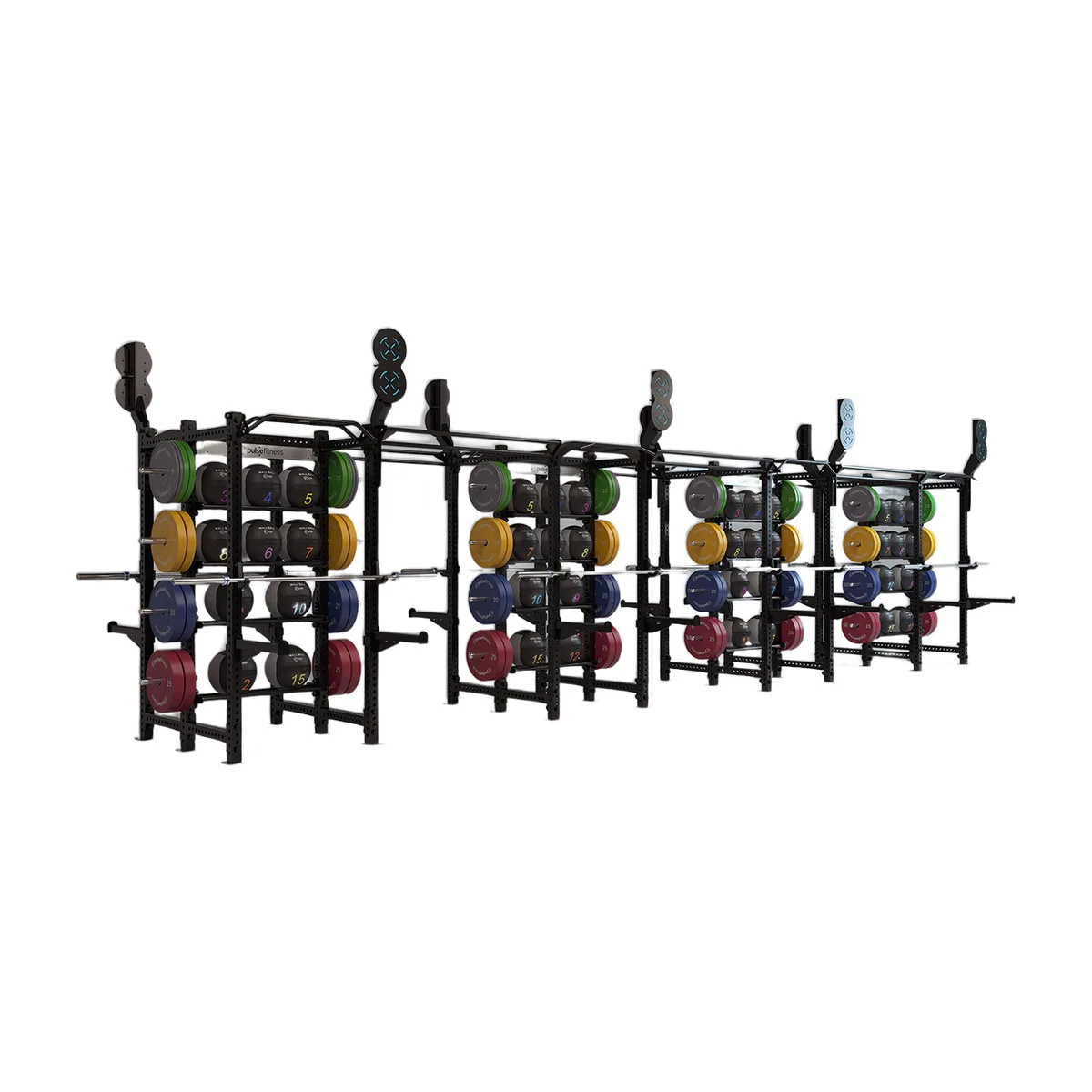

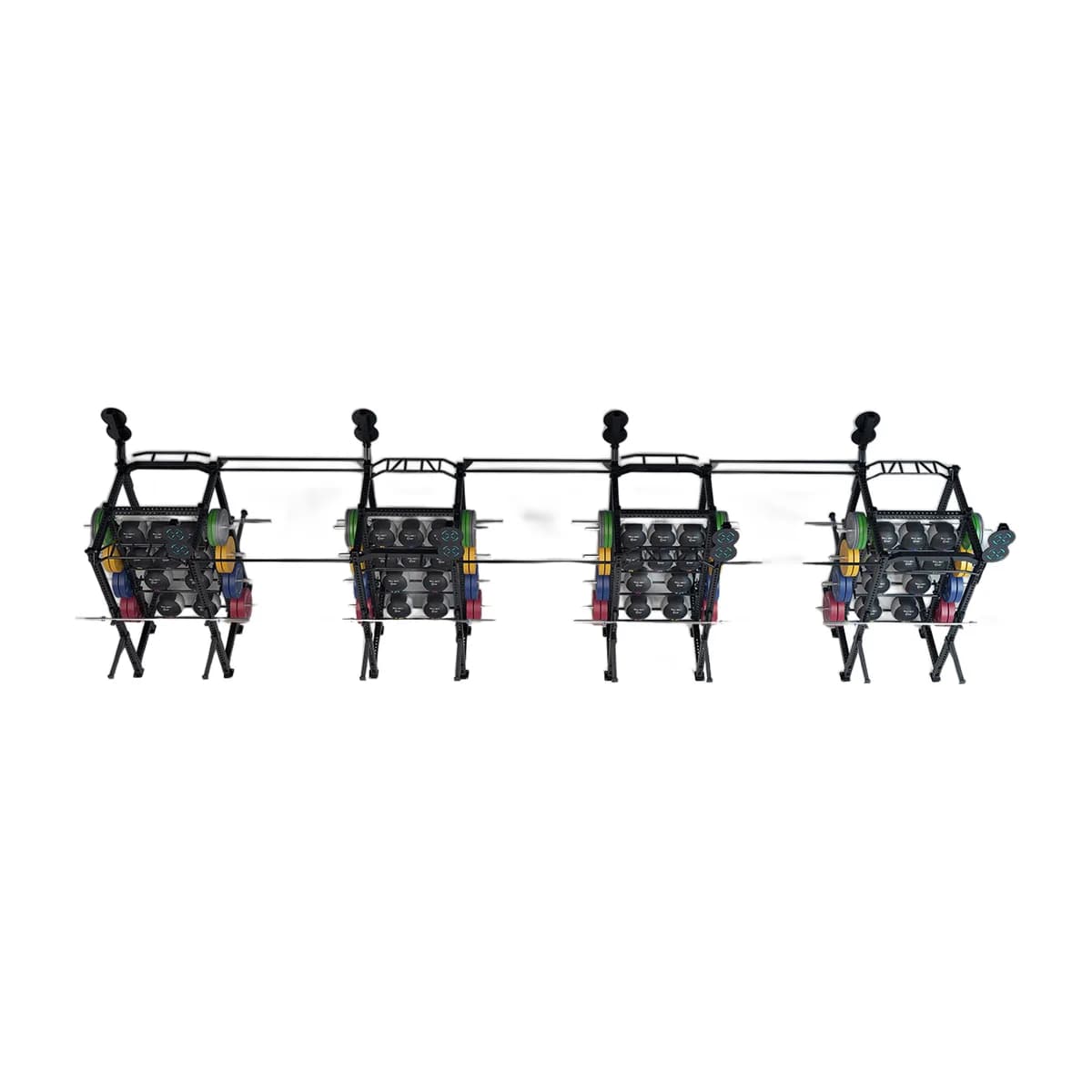

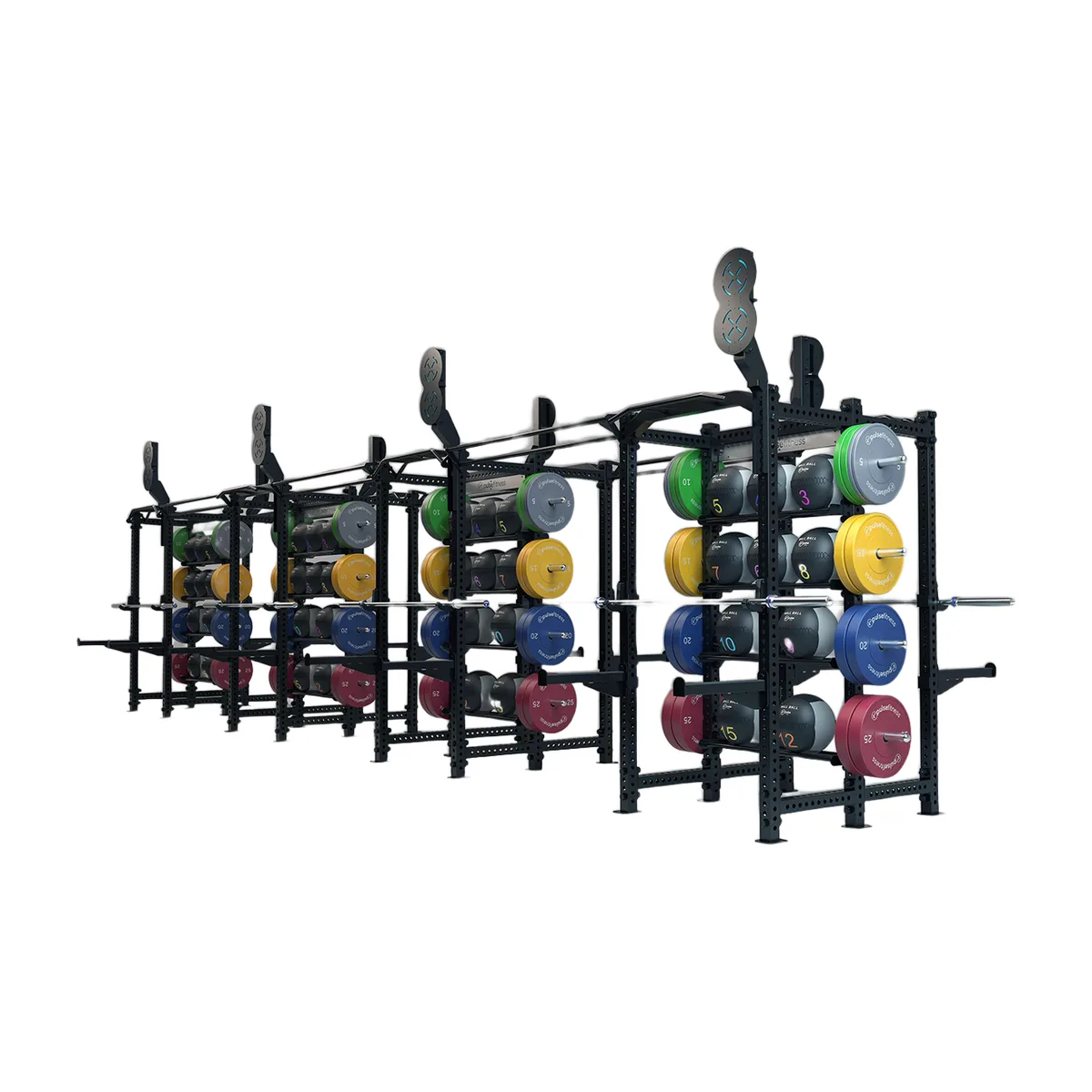

Functional Training Rig, 016

Constructed from heavy-gauge steel section, and built to endure the most vigorous of workouts. The free-standing, single or dual-sided Functional Training Rig is the most versatile, modular, piece of commercial fitness equipment available. Designed to support a wide range of workouts and accessory storage, all within one highly customisable, space-efficient solution. The 960i can be configured (and re-configured if necessary)...

Request a quote WhatsApp +974 5583 6103

Specification sheet, lead time and installation scope on request.

Overview

Category: Functional · Functional Rig
Supplied by: Equipt, with installation and service

Specification23

Overall Functional Rig Length: 1086.4cm / 427-3/4″
Single Strength Bay Length: 112.5cm / 44-5/16″
Single Conditioning Bay (180cm) Length: 187.5cm / 73-13/16″
Height: 320.5cm / 126-3/16″
Width: 185.9cm / 73-3/16″
Recommended Ceiling Height: 400cm / 157-1/2″
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Functional Rig Uprights: The 2.4m (94-1/2″) uprights are constructed from commercial grade, 75x75x3mm (11 gauge), heavy-duty, box steel. They feature 46 laser-cut holes (per-side), and 38 indication numbers, to make it easier to arrange any accessories. Holes in baseplates are provided for securing to the floor.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Frame Adjustment / Quick Reference: Laser-Etched and Numbers in Frame Uprights.
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken.
Multiple Grip Positions: Multiple grip positions allows the user to be more specific about which muscle groups are worked out.
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
ATTACHMENTS: 4 x Multi-Grip Pull Up Bar / 4 x Pull Up Bars: Multiple-grip, chin-up handles.
ATTACHMENTS: 8 x Flat Sandwich J-Cups (in a Pair): The heavy-duty flat sandwich j-cups feature a thick polyurethane insert to protect the knurling on any olympic powerbar, and a plastic lining to protect the Functional Rigs uprights. Like the rest of the Functional Rig range of Attachments, they are finished in a durable, epoxy powder coat, that is incredibly resistant to chips and rust.; They have a larger opening than that of a standard j-hook, this works especially well with regular and oversized specialty bars.; Each j-cup has a weight capacity of 453.6kg / 1,000lbs, and is supported by a laser-cut sandwich construction.
ATTACHMENTS: 8 x Spotter Arms (in a Pair): Lift safely with confidence using the versatile, easy-to-use spotter arms. Made from heavy-duty, 3mm (11 gauge) steel box section, they have a weight capacity of 453.6kg / 1,000lbs. Quickly slide them into the uprights of the Functional Rig (like a j-cup), securely lock them with the quick-release pin, then rotate them into place. Plastic liners along the top protect the olympic powerbar during heavy drops.
ATTACHMENTS: 32 x Plate Storage Horns: Store any olympic weight plate on the Functional Rig without need for a separate storage unit. Each storage horn is 32.6cm / 12-13/16” long, with a diameter of 48.3mm / 1-7/8″. They are finished in chrome-plated steel, which is 3mm (11 gauge) thick. The horns are a bolt-on design and can hold four 25kg / 55.1lbs. training olympic bumpers plates.
ATTACHMENTS: 8 x Dual Wall Ball Targets: Practice training with a wall ball. The dual wall ball targets can be set to the standard workout height for a wall ball, which is 3.5m / 10’ for the average height of a male, and 2.7m / 9’ for the average height of a female. The target features laser-cut detailing, and is finished in black epoxy powder coat.
ATTACHMENTS: 16 x Ball Storage Shelf (105cm Length): A space-saving, 3mm / 11-gauge steel, black epoxy powder coat, shelf. It can be used to store items like medicine balls, or slam balls on the Functional Rig.; NB: This ball shelf can be fixed flat, or be set on an angle of 17.5%.
OPTIONAL EXTRAS: Shown Optional Extras: Wall Balls: ( 2kg | 3kg | 4kg | 5kg | 6kg | 7kg | 8kg | 9kg | 10kg | 12kg | 15kg ); Olympic Plates: Training ( 5kg | 10kg | 15kg | 20kg | 25kg )
Back-order Details: Currently, delivery estimate, 12 weeks from receipt of order
Model No: 960i
