Pulse Fitness UK · Functional

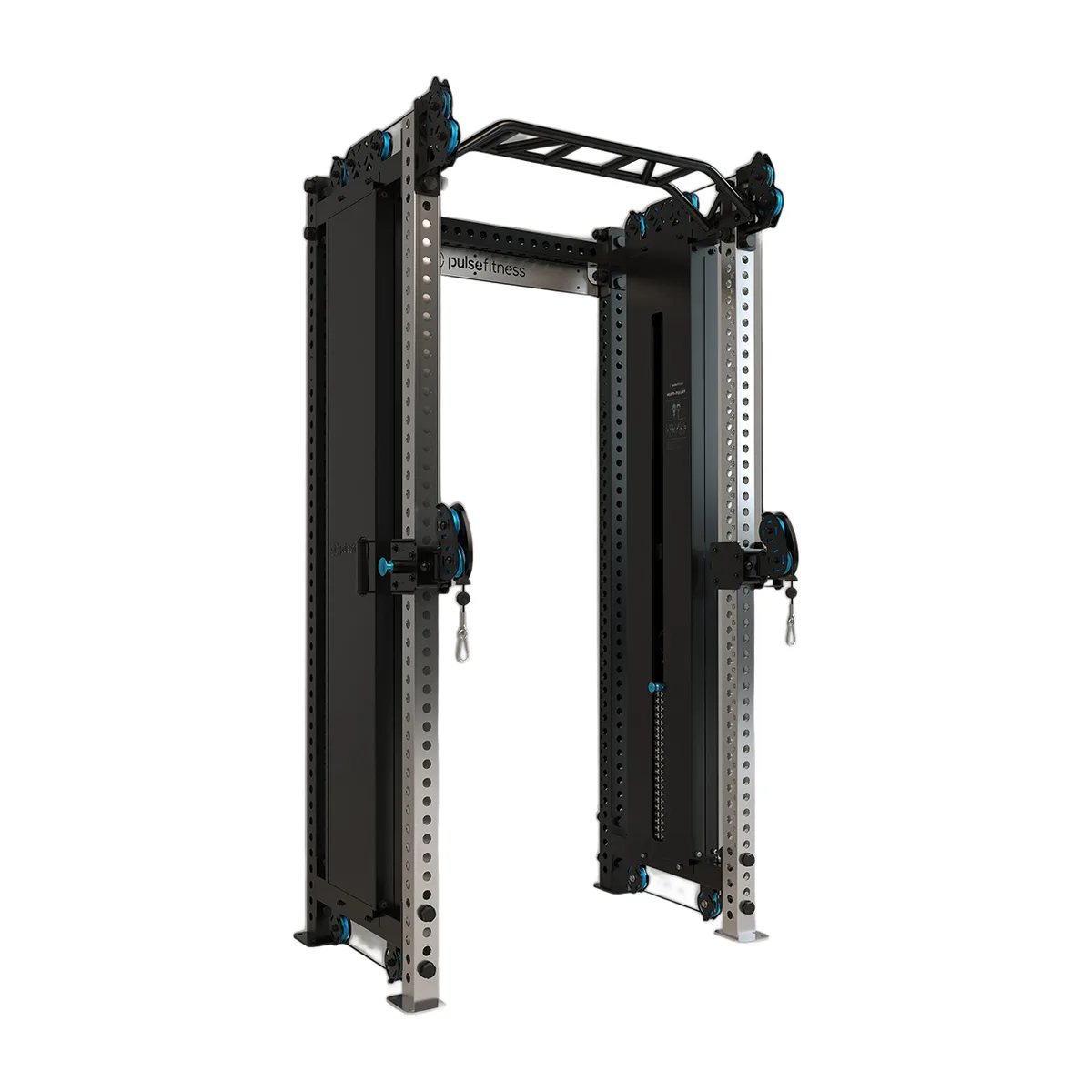

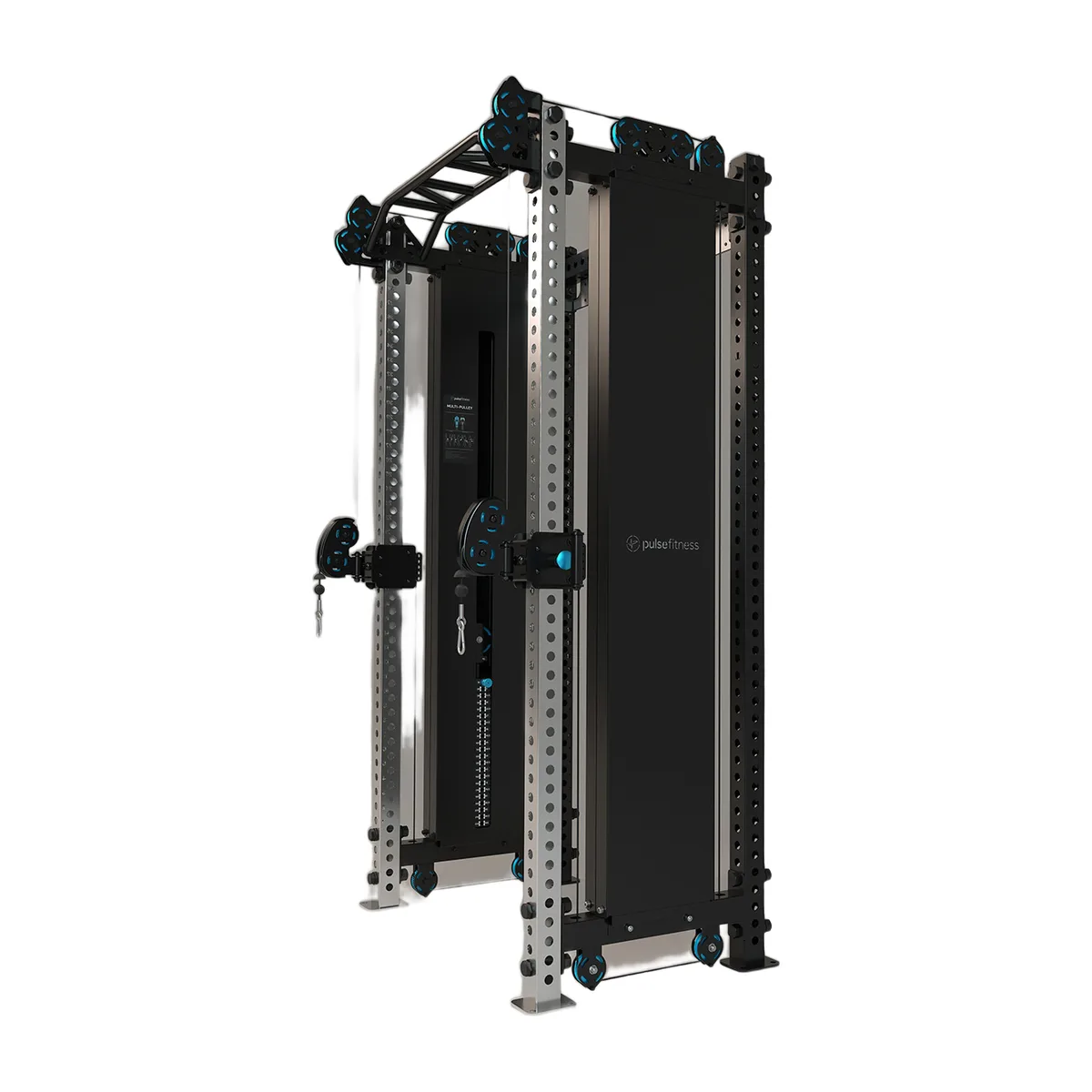

Functional Training Rig, 014

Constructed from heavy-gauge steel section, and built to endure the most vigorous of workouts. The free-standing, single or dual-sided Functional Training Rig is the most versatile, modular, piece of commercial fitness equipment available. Designed to support a wide range of workouts and accessory storage, all within one highly customisable, space-efficient solution. The 960i can be configured (and re-configured if necessary)...

Request a quote WhatsApp +974 5583 6103

Specification sheet, lead time and installation scope on request.

Overview

Category: Functional · Functional Rig
Supplied by: Equipt, with installation and service

Specification25

Overall Functional Rig Length: 149.8cm / 59″
Single Strength Bay Length: 112.5cm / 44-5/16″
Height: 246.3cm / 96-15/16″
Width: 102.1cm / 40-3/16″
Recommended Ceiling Height: 300cm / 118-1/8″
Weight Stack Plates: 100kg / 220lbs. (x2)
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Functional Rig Uprights: The 2.4m (94-1/2″) uprights are constructed from commercial grade, 75x75x3mm (11 gauge), heavy-duty, box steel. They feature 46 laser-cut holes (per-side), and 38 indication numbers, to make it easier to arrange any accessories. Holes in baseplates are provided for securing to the floor.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Frame Adjustment / Quick Reference: Laser-Etched and Numbers in Frame Uprights.
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken.
Multiple Grip Positions: Multiple grip positions allows the user to be more specific about which muscle groups are worked out.
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
ATTACHMENTS: Fully Enclosed Weight Stack Tower / Magnetic and Tethered Weight Stack Pin / Weight Plates / Guide Rods: The selectorised Dual Cable-Pulley provides users with a low starting weight and yet still has the capacity of a full weight plate range. This means users can build up their workout gradually, whilst the equipment still accommodates the widest possible user group.; The weight stack tower is completely covered to provide the best possible user safety experience, protecting bystanders from accidental contact with a moving weight plate. The front facing shrouds are full-length, with a 65mm (2-9/16″) wide slot, giving access to the 8mm (5/16″) diameter, weight stack pin. The magnetic weight stack pin assures positive locking into the weight plates and is secured to the weight stack via a plastic-coated tether cable. The pins cannot be removed from the machine. The weight stack pins are colour-coded for easy identification.; The cast and machined solid-steel weight plates are 24mm (15/16″) thick, 4.5kg (10lbs.) in size, with precision fitted self-lubricating nylon bushes. This is to ensure smooth travel on the guide rods which are 20mm (13/16″) in diameter, made from steel, polished with corrosion-resistant chrome plating for a smooth operation.
ATTACHMENTS: Weight Stack Suspension: Proven rubber bumper damping system.
ATTACHMENTS: Smooth Operation: Pulse Fitness strength products are renowned for their smoothness of operation. This results from our precision-engineered transmission system and weight stack tower assembly, which reduces the coefficient of friction and significantly cuts maintenance costs.
ATTACHMENTS: Cable Transmission: Preformed and braided stainless steel cable, measures 5.5mm (1/4″) diameter, and is rated to over 1134kg (2500lbs.) load. The 7×19 strand construction is lubricated, nylon-coated cable meets heavy-duty commercial specifications.
ATTACHMENTS: Enclosed Pulleys and Bearings: The pulleys come in two sizes, 11.5cm (4-1/2″) and 8.9cm (3-1/2″) diameter. They are constructed from aluminium, and designed with a deep V-grooved channel, to provide a secure cable seating.; The pulley’s bearings are precision ground and have sealed ball bearing races, for added durability and a ‘fluid’ smooth feel.; The pulley’s pivot axles are solid steel with oil-impregnated bronze bushings that allow for precise alignment and frictionless movement.
ATTACHMENTS: Hand-Grip Assembly: The hand-grips have been positioned to ensure a neutral wrist position is always achievable. This facilitates less stress on the users wrist, which in turn allows for a more comfortable, and a safer work-out.; The hand-grips are formed from a slip-resistant material that is non-absorbing and wear-and-tear resistant.
ATTACHMENTS: Variable Height Pivotal Pulley: This allows the user to focus on either upper and lower limbs, as well as the trunk musculature.
ATTACHMENTS: Manual Adjustments: Manual adjustments are made simple via easy-grip, pull spring-loaded, lock-pins that are constructed using a hardened plunger and chrome plated ‘tube-in-tube’ adjustment assemblies.
ATTACHMENTS: Cable and Pulley Ratio: 1:1
ATTACHMENTS: 1 x Multi-Grip Pull Up Bar: Multiple-grip, chin-up handles.
Model No: 960i
