Pulse Fitness UK · Functional

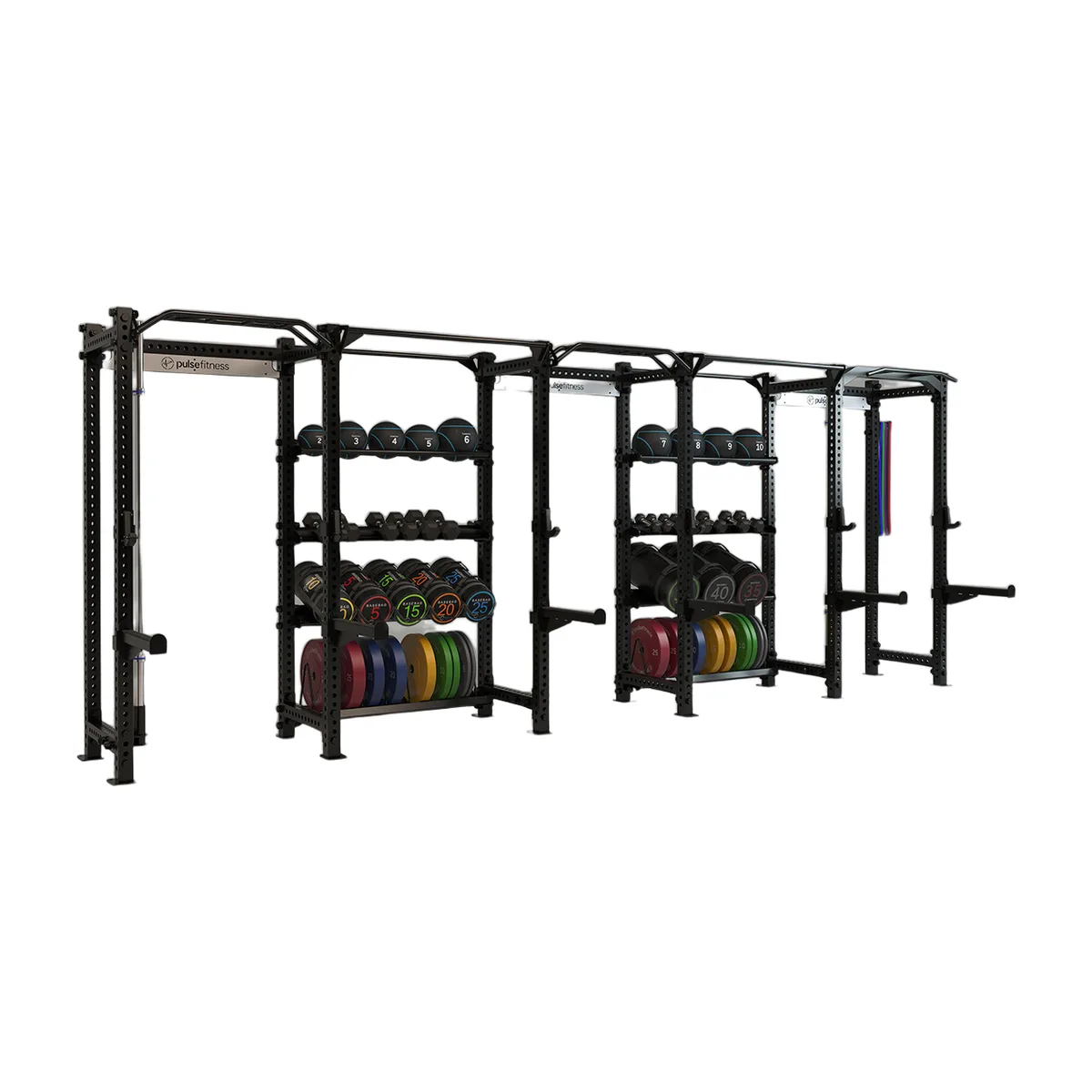

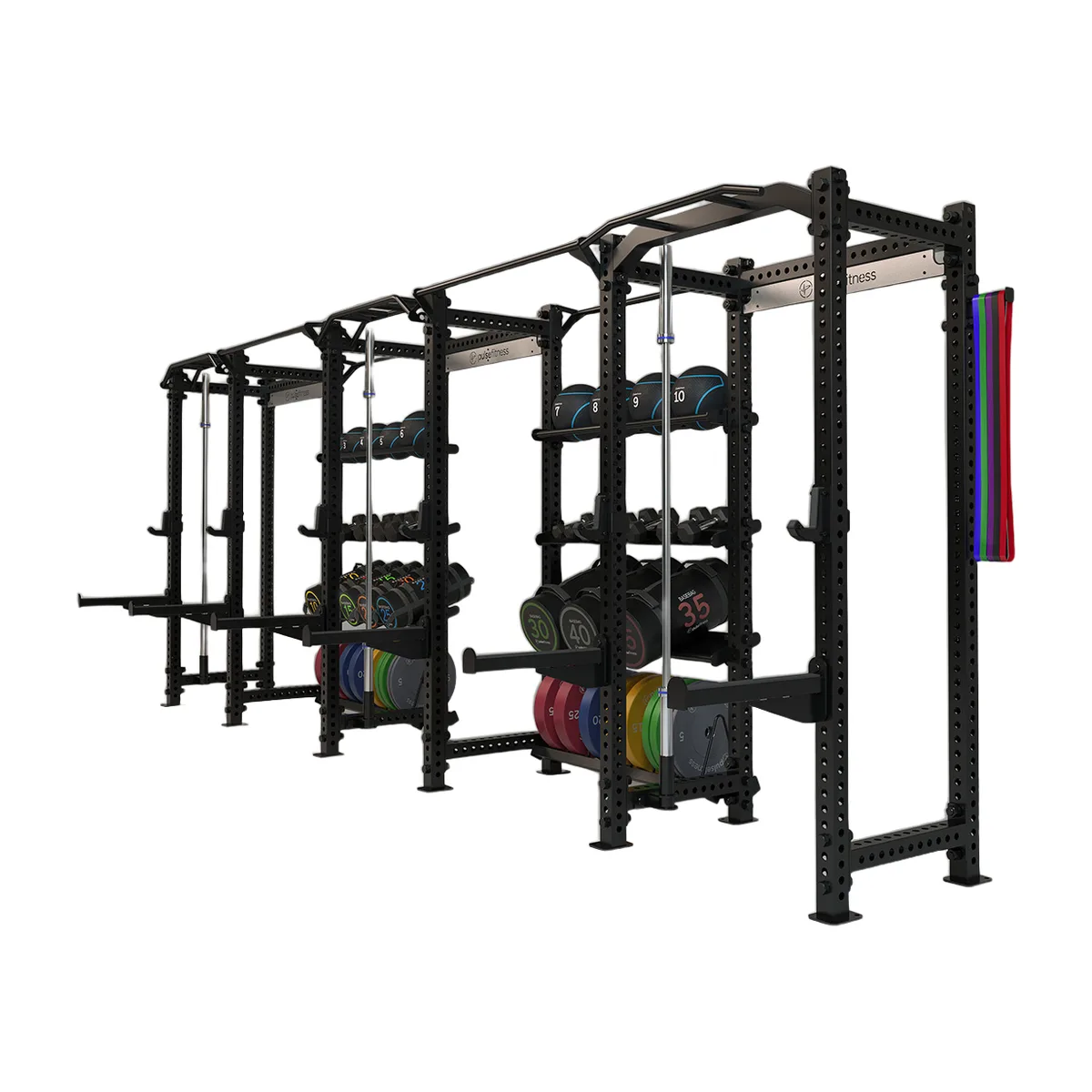

Functional Training Rig, 013

Constructed from heavy-gauge steel section, and built to endure the most vigorous of workouts. The free-standing, single or dual-sided Functional Training Rig is the most versatile, modular, piece of commercial fitness equipment available. Designed to support a wide range of workouts and accessory storage, all within one highly customisable, space-efficient solution. The 960i can be configured (and re-configured if necessary)...

Request a quote WhatsApp +974 5583 6103

Specification sheet, lead time and installation scope on request.

Overview

Category: Functional · Functional Rig
Supplied by: Equipt, with installation and service

Specification26

Overall Functional Rig Length: 639.6cm / 251-13/16″
Single Strength Bay Length: 112.5cm / 44-5/16″
Single Conditioning Bay Length: 137.5cm / 54-1/8″
Height: 240cm / 94-1/2″
Width: 109cm / 42-15/16″
Recommended Ceiling Height: 300cm / 118-1/8″
Frame Construction: All Pulse Fitness products are constructed from durable 3mm (11 gauge) steel that is designed to give exceptional structural integrity and stability even during the most vigorous workout.
Frame Protection: Once welded, the frames are treated against corrosion by being grit blasted and zinc pre-treated (for guaranteed durability). They are furnace baked, heat-cured and electrostatically epoxy powdered (which ensures maximum adhesion). This gives them a tough, corrosive-resistant and easy to clean finish, offering unbeatable reliability and longevity.
Functional Rig Uprights: The 2.4m (94-1/2″) uprights are constructed from commercial grade, 75x75x3mm (11 gauge), heavy-duty, box steel. They feature 46 laser-cut holes (per-side), and 38 indication numbers, to make it easier to arrange any accessories. Holes in baseplates are provided for securing to the floor.
Mouldings: The injection-mouldings are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.; All rubber coverings are durable and have a high impact resistance; they too, are easy to wipe clean.
Frame Adjustment / Quick Reference: Laser-Etched and Numbers in Frame Uprights.
Multiple Start Positions: The user can choose between multiple starting position. This allows for a wide range of both toning and bodybuilding workouts to be undertaken.
Multiple Grip Positions: Multiple grip positions allows the user to be more specific about which muscle groups are worked out.
Ease of Use: Weight selection and all adjustments are simple and easy to make from the exercise position with all positions clearly indexed.
ATTACHMENTS: 2 x Multi-Grip Pull Up Bars / 1 x Pull Up Bar: Multiple-grip, chin-up handles.
ATTACHMENTS: 3 x Flat Sandwich J-Cups (in a Pair): The heavy-duty flat sandwich j-cups feature a thick polyurethane insert to protect the knurling on any olympic powerbar, and a plastic lining to protect the Functional Rigs uprights. Like the rest of the Functional Rig range of Attachments, they are finished in a durable, epoxy powder coat, that is incredibly resistant to chips and rust.; They have a larger opening than that of a standard j-hook, this works especially well with regular and oversized specialty bars.; Each j-cup has a weight capacity of 453.6kg / 1,000lbs, and is supported by a laser-cut sandwich construction.
ATTACHMENTS: 3 x Spotter Arms (in a Pair): Lift safely with confidence using the versatile, easy-to-use spotter arms. Made from heavy-duty, 3mm (11 gauge) steel box section, they have a weight capacity of 453.6kg / 1,000lbs. Quickly slide them into the uprights of the Functional Rig (like a j-cup), securely lock them with the quick-release pin, then rotate them into place. Plastic liners along the top protect the olympic powerbar during heavy drops.
ATTACHMENTS: 1 x Resistance Band Holder: Add extra versatility to the Functional Rig with a super secure, and durable, resistance band holder. This solid-steel peg design bolts onto the Rig’s uprights. The band holder can also be used to store chains, attachments, and other gym accessories.
ATTACHMENTS: 3 x (Single) Powerbar Storage: Save space and securely store any olympic powerbar with the (single) powerbar storage. This practical attachment is bolted to one of the Functional Rig’s side beams. Featuring a 5cm / 2” diameter tube that fits the sleeve of most standard-sized olympic powerbars.; This attachment is heavy-duty, made from steel and finished with a protective black epoxy powder coat. It was designed to hold one olympic powerbar vertically, to take up minimal space.
ATTACHMENTS: 2 x Storage Shelf (130cm Length): Seamless, space-saving, 3mm / 11-gauge steel, black epoxy powder coat, shelf. It can be used to store items like kettlebells, balls, or small accessories turning the Functional Rig into a storage solution.; NB: This shelf can be fixed flat, or be set on an angle of 17.5%.
ATTACHMENTS: 2 x Ball Storage Shelf (130cm Length): A space-saving, 3mm / 11-gauge steel, black epoxy powder coat, shelf. It can be used to store items like medicine balls, or slam balls on the Functional Rig.; NB: This ball shelf can be fixed flat, or be set on an angle of 17.5%.
ATTACHMENTS: 2 x Dumbbell Storage Shelf (130cm Length): A space-saving, 3mm / 11-gauge steel, black epoxy powder coat, shelf. It can be used to store items like dumbbells on the Functional Rig.; NB: This dumbbell shelf can be fixed flat, or be set on an angle of 17.5%.
ATTACHMENTS: 2 x Bumper Plate Dividers Shelf (Toast Rack)(130cm Length): A space-saving, 3mm / 11-gauge steel, black epoxy powder coat, shelf. It can be used to store olympic weight plates on the Functional Rig.; NB: This toast rack can only be fixed flat.
OPTIONAL EXTRAS: Shown Optional Extras: Slam Balls: ( 3kg | 5kg | 7kg | 9kg | 12kg | 15kg ); Olympic Plates: Training ( 5kg | 10kg | 15kg | 20kg | 25kg ), Calibrated ( 10kg | 15kg | 20kg | 25kg ); Basebags: ( 5kg | 10kg | 15kg | 20kg | 25kg | 30kg | 35kg | 40kg | 45kg | 50kg )
OPTIONAL EXTRAS: Powerbars: Competition ( Chrome | Stainless | Womens ), Training ( Chrome | Cross-Fit ), Olympic ( 72″ | 60″ ): Hex. Dumbbells: ( 1kg | 2kg | 3kg | 4kg | 5kg | 6kg | 7kg | 8kg | 9kg | 10kg | 12.5kg | 15kg | 17.5kg | 20.0kg | 22.5kg | 25.0kg | 30.0kg | 35.0kg | 40.0kg | 45.0kg | 50kg )
Model No: 960i
