Pulse Fitness UK · Strength

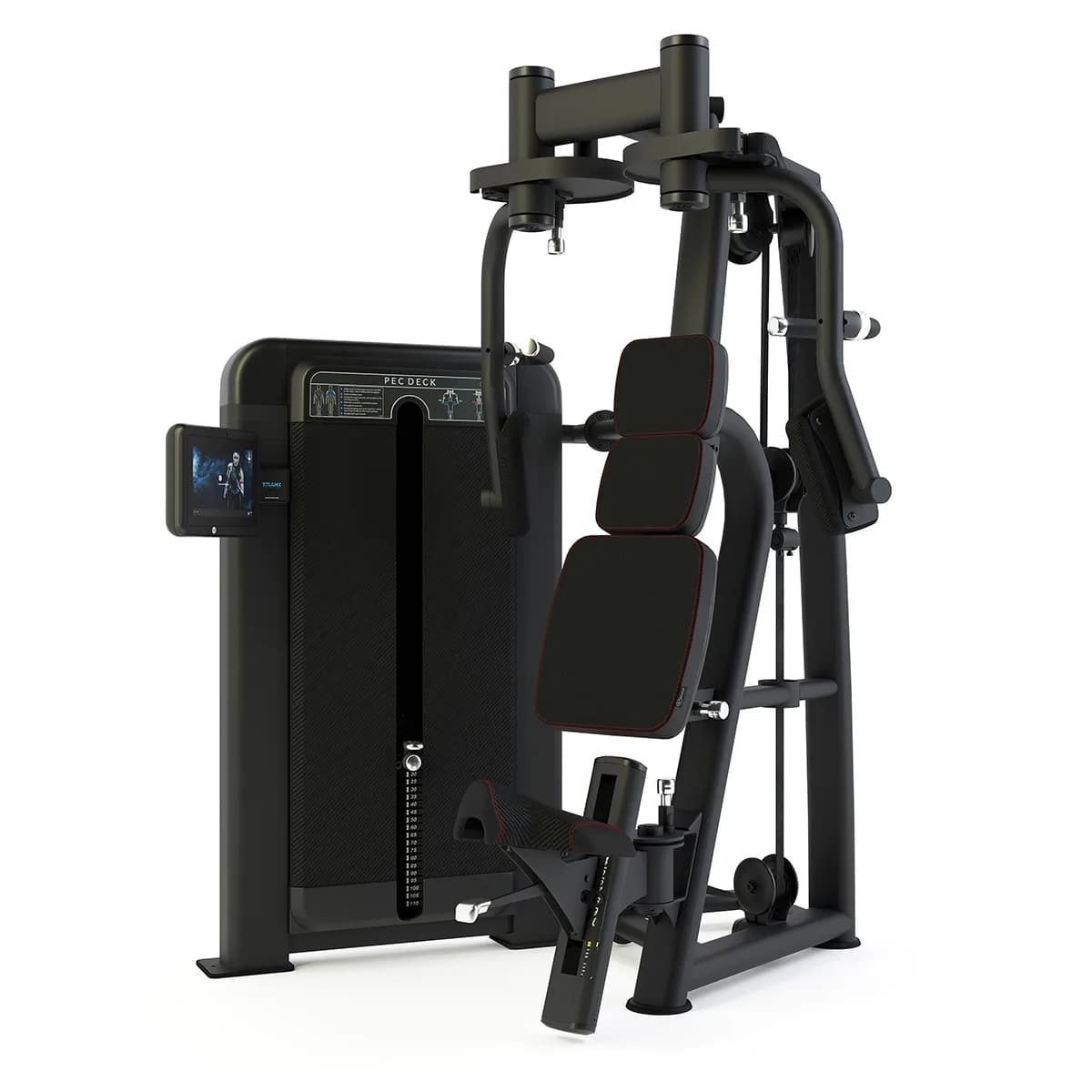

Premium Pec Deck
Standard
Premium Pec Deck (Independent Arm) 1x100kg Weight Stack Tower with 10.1" (Cirrus V4) Touchscreen Console in Sand Black with Black / Carbon Fibre Upholstery Red Stitching (NFC.
4 variations
Version
Specification sheet, lead time and installation scope on request.
Overview
- Category
- Strength · Selectorised
- Supplied by
- Equipt, with installation and service
Specification56
- Length
- 143cm / 56-5/16″
- Height
- 181.5cm / 71-7/16″
- Width
- 154cm / 60-5/8″
- Weight
- 298kg /657lbs.
- Incremental, Optional Add-on Weight
- 2.5kg / 5.5lbs.
- Weight Stack Plates, Standard Total Weight
- 100kg / 220lbs.
- Maximum User Weight
- 180kg / 397lbs.
- Touchscreen
- 25.7cm / 10-1/8″ Integrated High Contrast Capacitive Multi-Touch Colour Display; 16:9 Aspect Ratio; 1200×800 Resolution
- Gesture Interaction (cm/”)
- Yes: 30.5cm / 12″
- Navigation
- Touchscreen (& tactile controls, with raised iconography on the product)
- Active RFID reader
- Yes
- Bluetooth®
- Yes
- Via NFC Tag
- Yes
- LAN (Ethernet)
- Yes
- WiFi, IEEE802.11b/g/n+ac (2.4 GHz & 5GHz)
- Yes
- Bluetooth® 4.2 with NFC
- Yes
- USB 2.0
- Service Port, For software updates
- TRAKK™ Professional (NFC) Connectivity
- Optional, Yes
- Console O/S
- Android 9.01
- Power requirements
- 220-240V AC, 50/60Hz; US, 110-120V, 60Hz
- Mouldings
- The console is surrounded by an injection-moulded casing, these are are durable, high impact thermoplastic housings, which seal internal components, protecting the vital parts against dust and sweat, and are easy to wipe clean.
- Quick Start
- Programmable Sets and Reps Count-Up
- Goals
- Rep Goal, Sets & Reps (Preset and Custom)
- Units
- Metric / Imperial
- Sets
- Total Sets Count
- Reps
- Total Reps Count
- Weight
- Total kg / lbs. Lifted Count
- Duration
- Minutes, Seconds
- Avg. Range
- %
- Avg. Tempo
- Slow, Good, Fast
- How to Set-Up & Use equipment
- Yes: How to Set-Up the Equipment instructional videos and How to Use the Equipment instructional videos
- Results
- Yes
- Training Guidance
- Next exercise, Training programme
- Automatic Workout Tracking
- Yes
- Languages available
- English (UK), French, German, Japanese, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Turkish & Welsh
- One-button Start
- Yes
- Pause Function
- Yes
- Live QR-Codes
- Optional, Yes
- Localisation
- Adjust Default Language, Date & Time, Region, 24/12-hour Clock, Configuration
- Default user
- Adjust Default Sex, Weight, Age & Metric/Imperial, Configuration
- Display
- Adjust Default Brightness, Configuration
- Ethernet
- Configure, Ping test
- Wi-Fi
- Configure
- Service & Firmware
- Automatic Software Updates; Manual OS Updates
- Goals
- Adjust Default Rep Goal, 3 Sets x 10 Reps, 3 Sets x 12 Reps, 4 Sets x 10 Reps, 4 Sets x 12 Reps, Configuration
- Quick Start
- Adjust Default Exercise type (Sets goal/Reps goal) Goal, sets/reps, Configuration
- Create New Schedule
- Yes
- Schedule Type
- Schedule Name, Start Time, am, End Time, am, Duration, mins
- Days Active
- Mon, Tues, Wed, Thur, Fri, Sat, Sun
- Schedule Setup
- Sleep (Enable/disable, Reboot on wake); Guest Disable (Adjust Default Start time, am, End time, am, Configuration)
- TRAKK
- NFC user login (Enabled/disabled); Asset management (Enabled/disabled)
- NFC user login
- Show login page (Enabled/disabled); Guest Account (Enabled/disabled); Doctors note lockout (Enabled/disabled)
- Asset management
- Screen advertising (Enabled/disabled)
- Custom branding
- Club Logo (Enabled/disabled, Add Logo, Site Name, Configuration); text_tap( Enabled/disabled)
- Screensaver Setup
- Default Type (png/gif, mp4, tb); Show after (disabled, min/hour); Slide duration (sec/min); Add Images, Add Videos
- Model No
- 314H
Options1
Configuration
Carbon UpholsteryInclusive Carbon Upholstery
